Quadrat

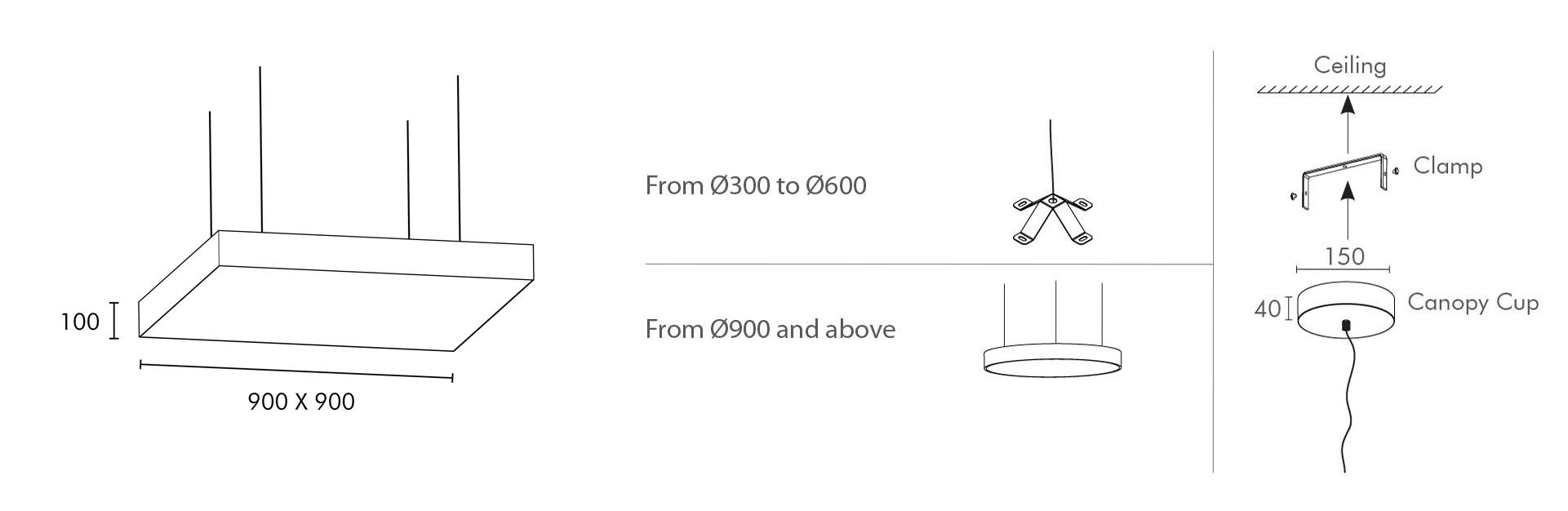

Quadrat features a sharp-edged square design, available from 300x300mm to 2400x2400mm. Constructed with powder-coated aluminium housing, it includes PMMA and stretch fabric diffusers for immaculate, glare-free light. Versatile in mounting options suspended, surface-mounted, or recessed. It suits various applications from sleek office spaces to stylish boardrooms. With a high-efficiency LED light source and optional DALI dimmable controls, the Quadrat offers a sophisticated lighting experience tailored to your needs. Its design ensures both functionality and elegance in modern settings.

  • Electrical
  • Input Voltage - 180 - 280 AC 50Hz
  • Driver Type - Constant Current Driver
  • Control - Switch / DALI / Analog
  • Connection - Plug-in Type Pre-wired
  • General Characteristics
  • Appliance Class - Class 2
  • Ingress Protection - IP40
  • Photobiological Safety - RG 0 - No Risk
  • Ambient Temperature - 0 to +50° C
  • Luminaire
  • Housing Material - Aluminium
  • Environment - Indoor
  • Mounting - Ceiling Suspended / Surface Mounted / Recess Mounted
  • Light Distribution - Direct / Indirect / Direct-Indirect
  • Body Finish - Powder Coated
  • Optics - PMMA / Acrylic Diffuser [Upto ∅ 1200] Stretch Fabric [Above ∅ 1200]
  • Driver Mount - Inside Canopy Cup / On Luminaire
  • Thermal Management - Passive Cooling
  • Light Source
  • LED - Medium Power LED
  • Binning - 3 Step MacAdam
  • Luminous Efficacy - 95 Lm/W
  • Color Temperature - 2700K / 3000K / 4000K / 5700K / 6500K
  • CRI - ≥80 (Standard) ≥90 (Optional) Tunable LED (Optional)
  • UGR - <19
  • LED Life - >50,000 hours
