Linio Curve

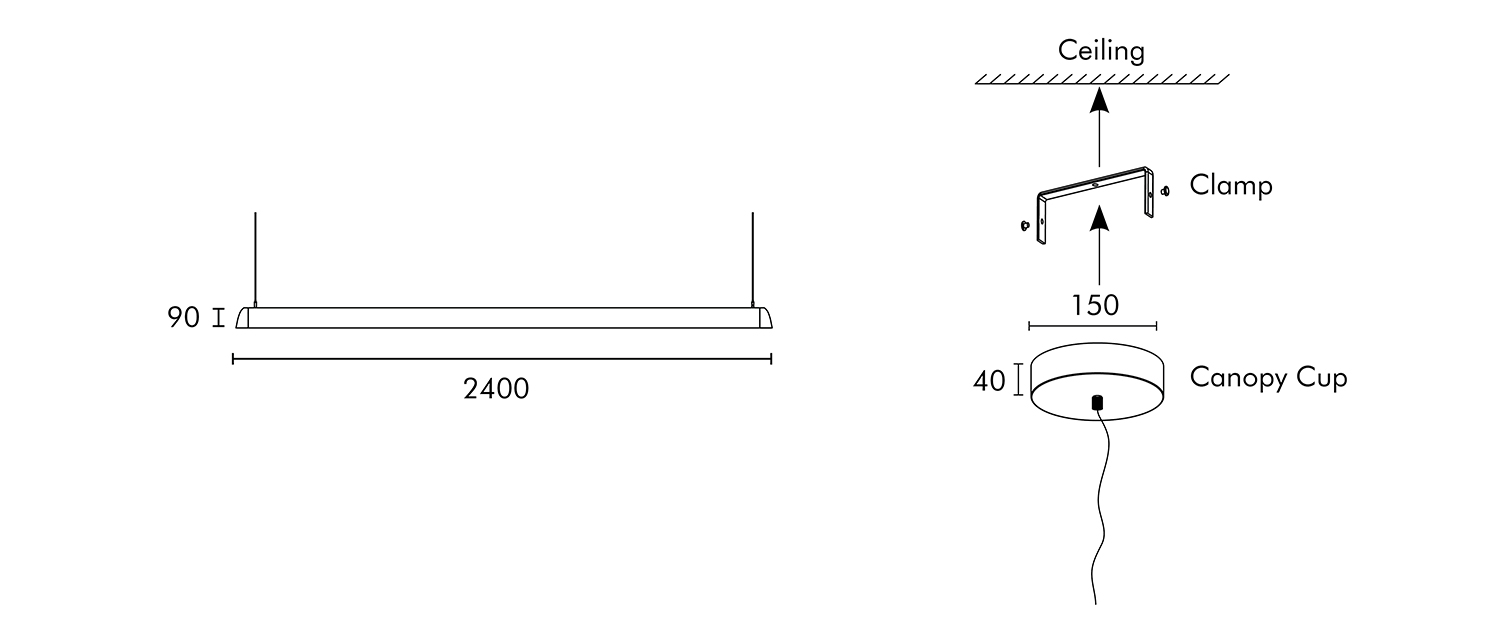

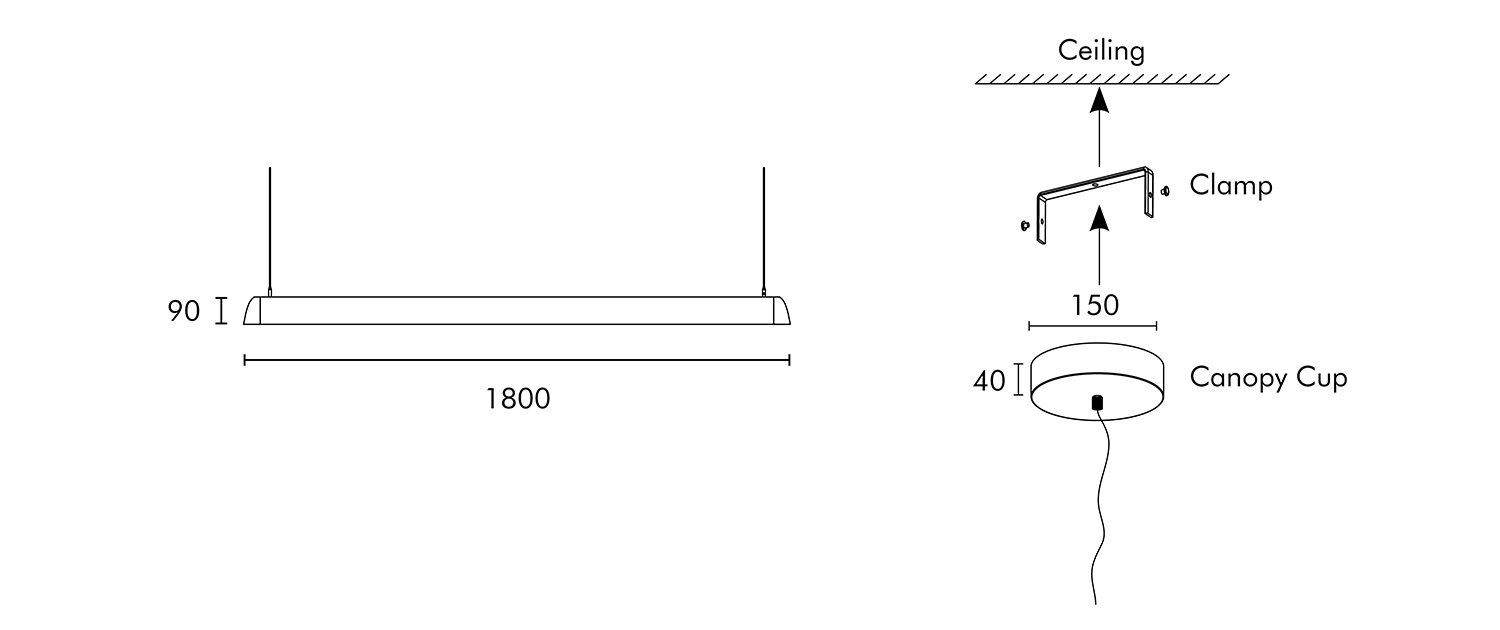

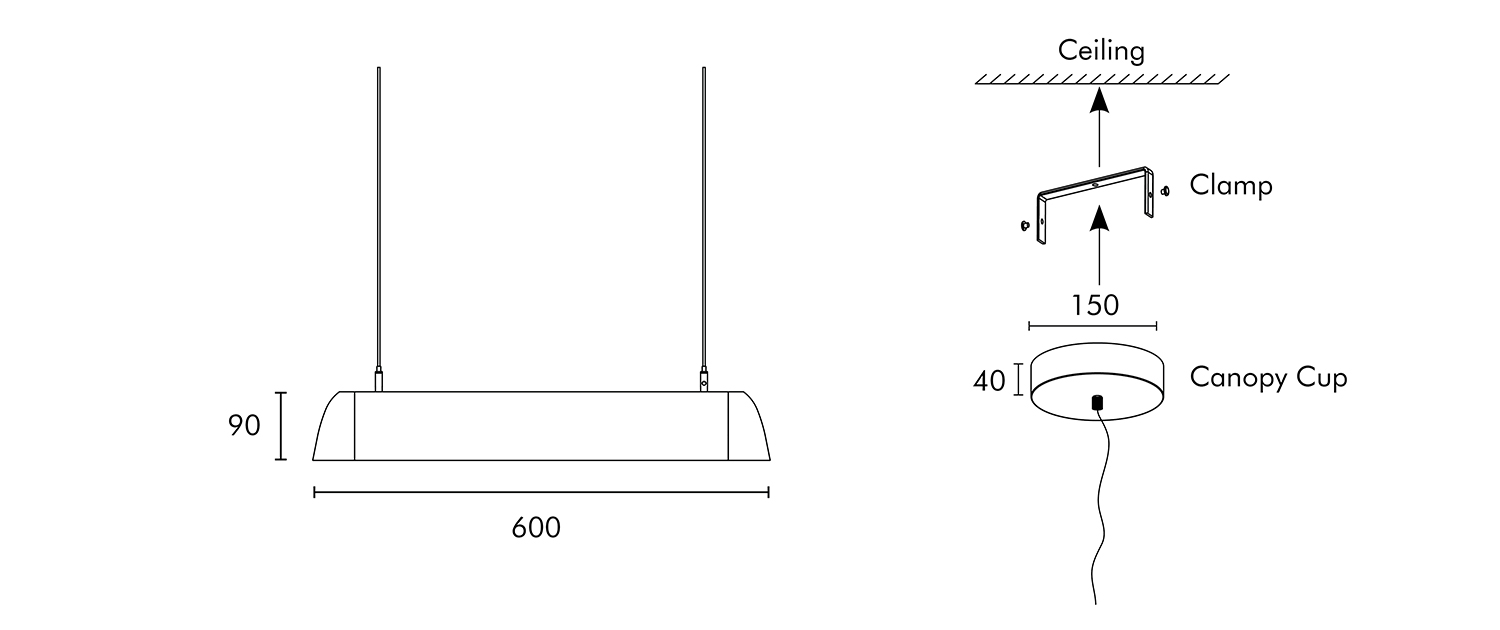

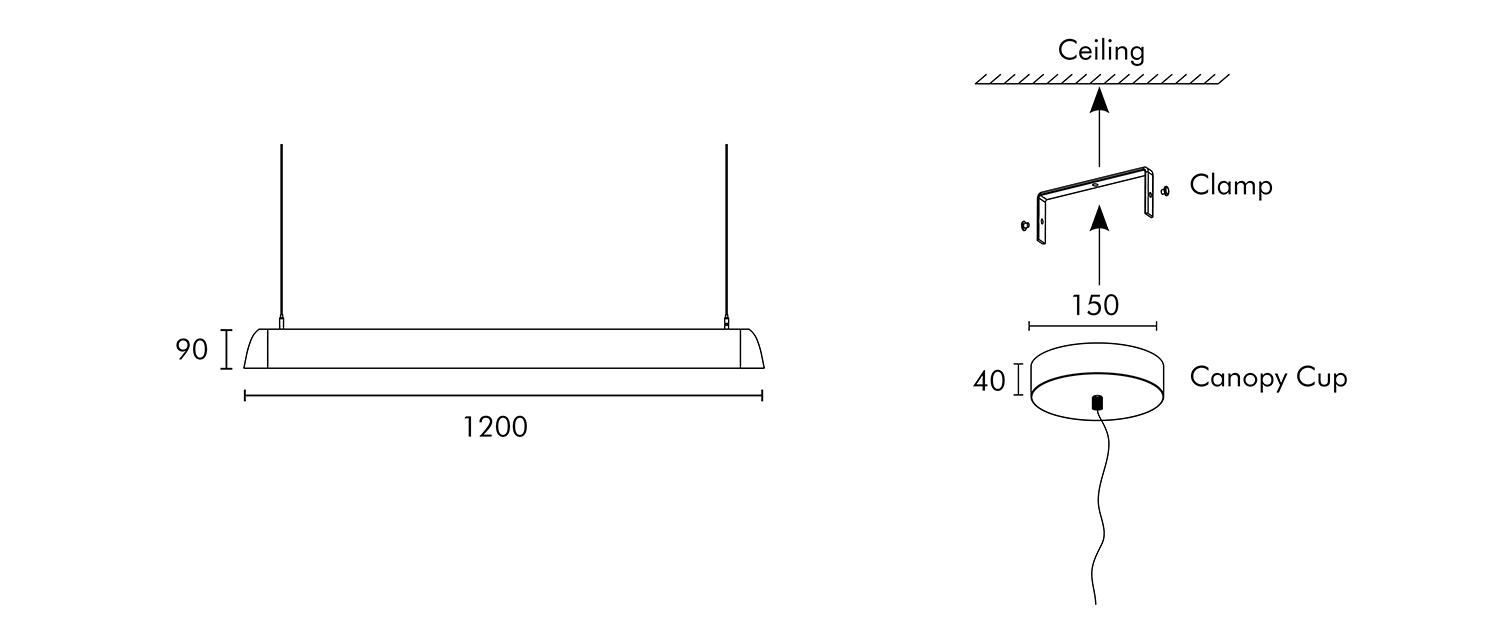

The Linio Curve luminaire features a curved edge design with end caps, crafted from aluminium extrusion and PMMA diffusers. Measuring 600 mm, 1200 mm, 1800 mm, and 2400 mm in length, it offers both direct and indirect light distribution, making it suitable for creating dynamic lighting effects in office spaces, conference rooms, and modern residential interiors. The fixture can be powder-coated according to RAL standards, ensuring it integrates well with diverse decor styles. Its ability to provide flawless, glare-free illumination enhances both functionality and aesthetics in contemporary settings.

  • Electrical
  • Input Voltage - 180 - 280 AC 50Hz
  • Driver Type - Constant Current Driver
  • Control - Switch / DALI / Analog
  • Connection - Plug-in Type Pre-wired
  • General Characteristics
  • Appliance Class - Class 2
  • Ingress Protection - IP40
  • Photobiological Safety - RG 0 - No Risk
  • Ambient Temperature - 0 to +50° C
  • Luminaire
  • Housing Material - Extruded Aluminium
  • Environment - Indoor
  • Mounting - Ceiling Suspended / Surface mounted
  • Light Distribution - Direct / Direct-Indirect
  • Body Finish - Powder Coated
  • Optics - PMMA / Acrylic Diffuser End Caps
  • Driver Mount - Integrated
  • Thermal Management - Passive Cooling
  • Light Source
  • LED - Medium Power LED
  • Binning - 3 Step MacAdam
  • Luminous Efficacy - 95 Lm/W
  • Color Temperature - 2700K / 3000K / 4000K / 5700K / 6500K
  • CRI - ≥ 80 (Standard) ≥ 90 (Optional) Tunable LED (Optional)
  • UGR - < 19
  • LED Life - > 50,000 hours
