W

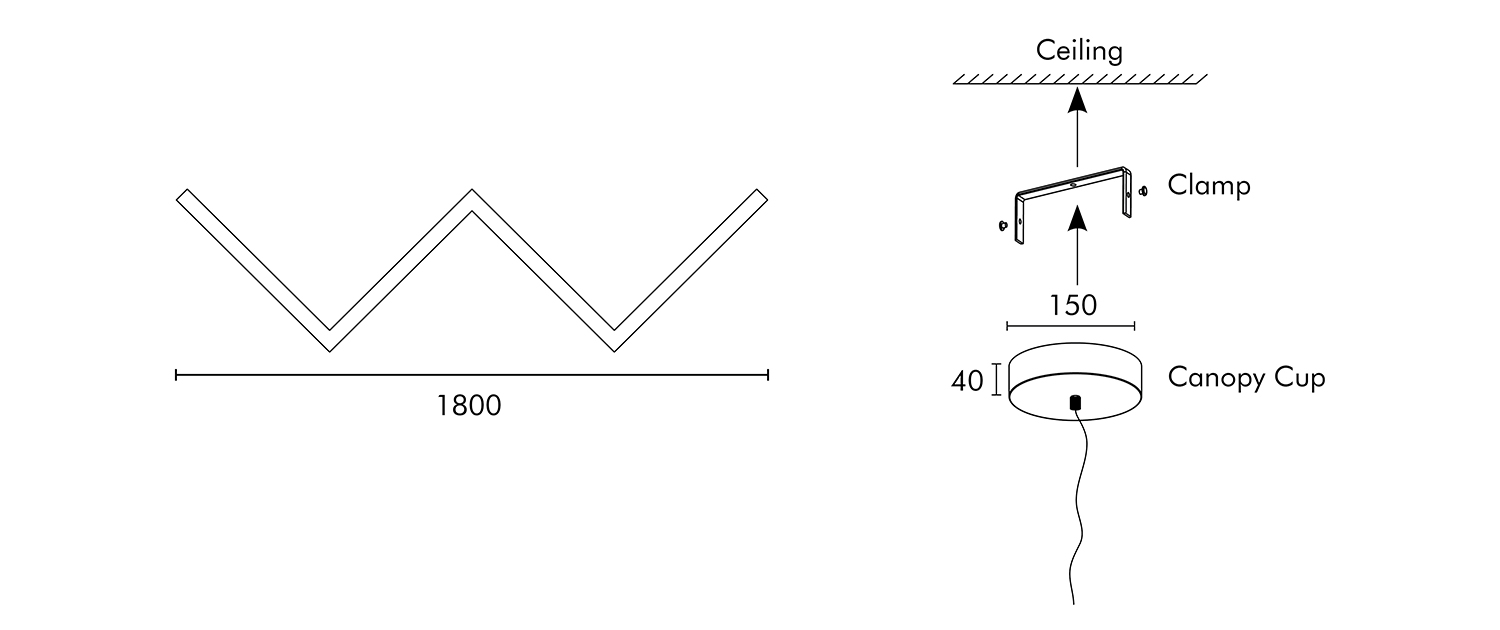

The W luminaire is a customizable linear fixture suspended from the ceiling with driver-mounted canopy cups and suspension cables. Available in standard lengths of 900 mm, 1800 mm, and 2700 mm, it can be tailored to meet specific lighting requirements. The fixture can be powder-coated in RAL colours to match different interior themes. Suitable for a range of applications, including office spaces, meeting rooms, and retail environments, the W luminaire combines flexibility and style to enhance various interior settings. Its linear design and customization options make it versatile and functional.

  • Electrical
  • Input Voltage - 180 - 280 AC 50Hz
  • Driver Type - Constant Current Driver
  • Control - Switch / DALI / Analog
  • Connection - Plug-in Type Pre-wired
  • General Characteristics
  • Appliance Class - Class 2
  • Ingress Protection - IP40
  • Photobiological Safety - RG 0 - No Risk
  • Ambient Temperature - 0 to +50° C
  • Luminaire
  • Housing Material - Extruded Aluminium
  • Environment - Indoor
  • Mounting - Ceiling Suspended / Surface Mounted
  • Light Distribution - Direct / Direct-Indirect
  • Body Finish - Powder Coated
  • Optics - PMMA / Acrylic Diffuser
  • Driver Mount - Inside Canopy Cup
  • Thermal Management - Passive Cooling
  • Light Source
  • LED - Medium Power LED Medium Power LED
  • Binning - 3 Step MacAdam 3 Step MacAdam
  • Luminous Efficacy - 95 Lm/W 95 Lm/W
  • Color Temperature - 2700K / 3000K / 4000K / 5700K / 6500K
  • CRI - ≥ 80 (Standard) ≥ 90 (Optional) Tunable LED (Optional)
  • UGR - < 19
  • LED Life - > 50,000 hours

Lunnark Lighting

Lunnark Lighting

Lunnark Lighting

Mounting Size Light Distribution Control CCT Color

Your Selected Product : W - LN02
