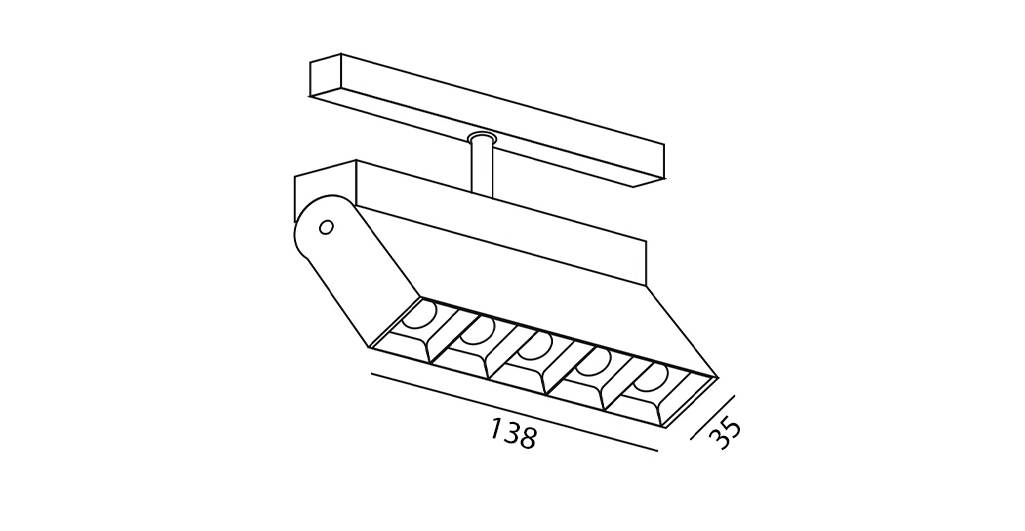

Stryke Swivel

A versatile linear module designed for magnetic track systems, featuring a dual-axis swivel mechanism for flexible adjustment on both sides. Constructed from die-cast aluminum to ensure thermal efficiency and structural strength. Equipped with precision LDA lenses offering 15°, 30°, and 45° beam angles, this fixture delivers controlled illumination in a clean, modular form—perfect for dynamic lighting environments.

  • Electrical
  • Input Voltage - 180 - 280 AC 50Hz
  • Driver Type - Constant Current Driver
  • Control - Switch / DALI / Analog
  • Connection - Inbuilt Copper Connector
  • General Characteristics
  • Appliance Class - Class 2
  • Ingress Protection - IP20
  • Photobiological Safety - RG 0 - No Risk
  • Ambient Temperature - 0 to +50° C
  • Luminaire
  • Housing Material - Aluminium
  • Environment - Indoor
  • Mounting - Track
  • Light Distribution - Dierct
  • Body Finish - Die Cast Aluminium
  • Optics - Lens
  • Driver Mount - Integrated
  • Thermal Management - Passive Cooling
  • Light Source
  • LED - Medium Power LED
  • Binning - 3 Step MacAdam
  • Luminous Efficacy - 95 Lm/W
  • Color Temperature - 3000K / 4000K / 5700K
  • CRI - ≥80 (Standard) ≥90 (Optional) Tunable LED (Optional)
  • UGR - <19
  • LED Life - >50,000 hours
