Plat

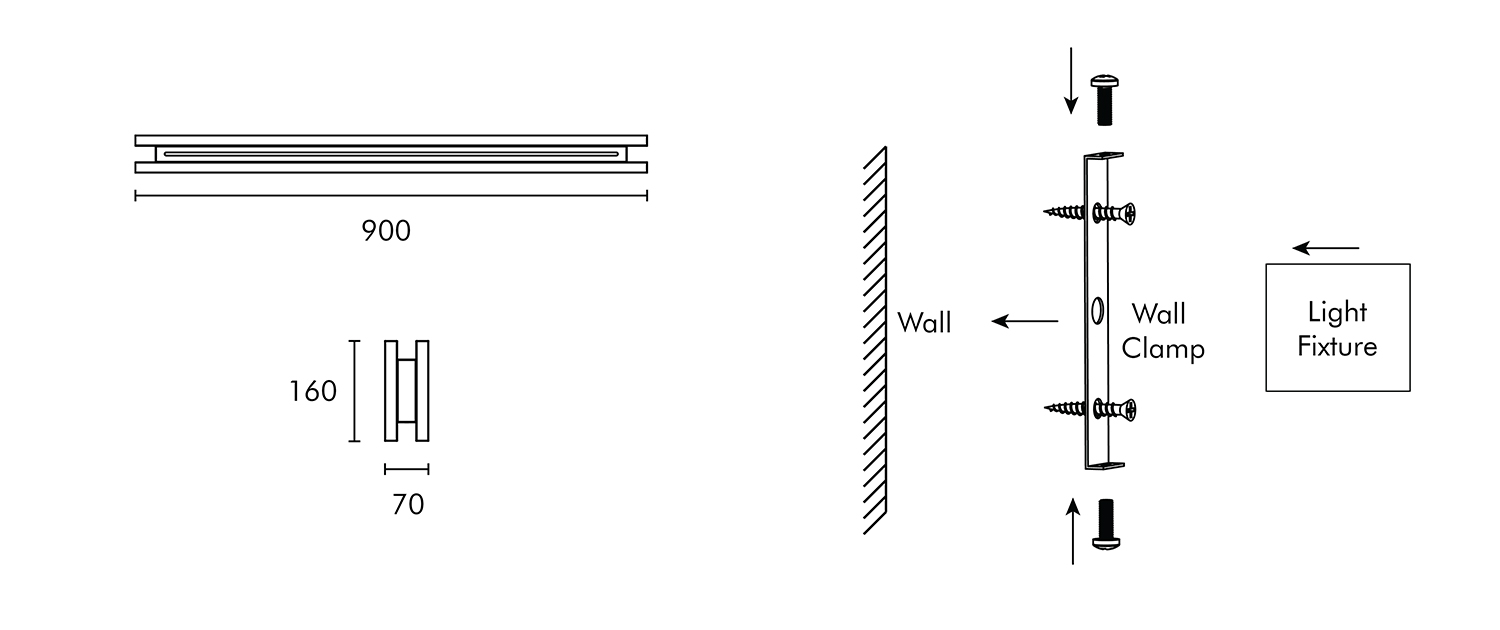

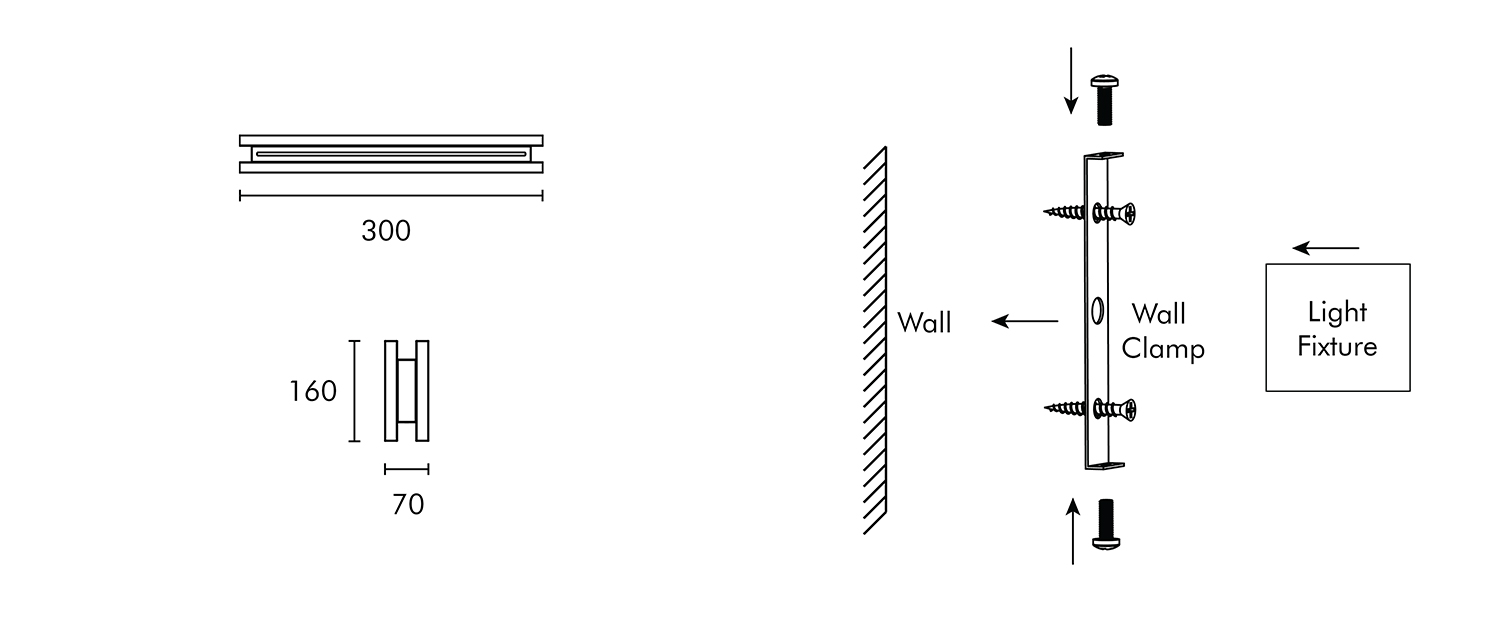

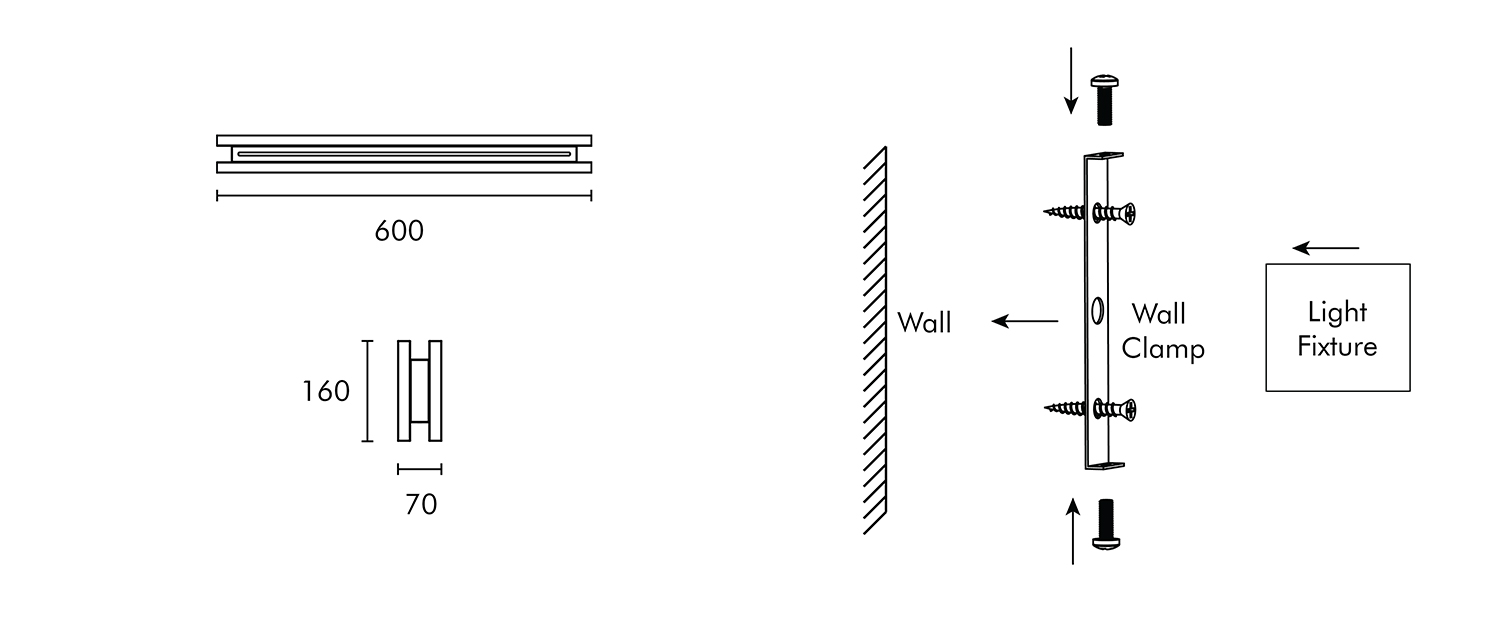

The plat family consists of wall-mounted wooden luminaires designed as up-down wall washers. Available in three lengths ∅300 mm, ∅600 mm, and ∅900 mm. Plat luminaires offer customizable wood options to fit different decor styles. Suitable for residential interiors, office spaces, and commercial settings, Plat provides effective wall-washing illumination with a clean and elegant design. Its versatility and customizable features make it an attractive choice for enhancing various interior environments.

  • Electrical
  • Input Voltage - 180 - 280 AC 50Hz
  • Driver Type - Constant Current Driver
  • Control - Switch / DALI / Analog
  • Connection - Plug-in Type Pre-wired
  • General Characteristics
  • Appliance Class - Class 2
  • Ingress Protection - IP40
  • Photobiological Safety - RG 0 - No Risk
  • Ambient Temperature - 0 to +50° C
  • Luminaire
  • Housing Material - Wood
  • Environment - Indoor
  • Mounting - Wall Mounted
  • Light Distribution - Direct & Indirect
  • Body Finish - Wood Finish
  • Optics - PMMA Diffuser
  • Driver Mount - Integrated
  • Thermal Management - Passive Cooling
  • Light Source
  • LED - Medium Power LED
  • Binning - 3 Step MacAdam
  • Luminous Efficacy - 95 Lm/W
  • Color Temperature - 2700K / 3000K / 4000K / 5700K / 6500K
  • CRI - ≥ 80 (Standard) ≥ 90 (Optional) Tunable LED (Optional)
  • UGR - < 19
  • LED Life - > 50,000 hours

Lunnark Lighting

Lunnark Lighting

Lunnark Lighting

Mounting Size Light Distribution Control CCT Color
